Rapid-PVST+

The Fast Evolution of Spanning Tree in Cisco Networks

Primary Difference Between PVST+ and Rapid-PVST+

In Cisco switching environments, Spanning Tree Protocol (STP) is a critical technology used to prevent Layer 2 loops. Cisco has developed several STP implementations to improve performance and scalability in VLAN-based networks. Two of the most common Cisco implementations are PVST+ (Per-VLAN Spanning Tree Plus) and Rapid-PVST+ (Rapid Per-VLAN Spanning Tree Plus).

The primary difference between PVST+ and Rapid-PVST+ is the convergence mechanism and speed when the network topology changes. While both protocols operate on a per-VLAN basis, they are built on different IEEE standards and behave very differently during failures and recoveries.

Overview of PVST+

PVST+ is Cisco’s enhancement of the original IEEE 802.1D Spanning Tree Protocol. It allows a separate spanning-tree instance for each VLAN, which gives network engineers better control over traffic paths.

Key Characteristics of PVST+

  • Based on IEEE 802.1D
  • One spanning-tree instance per VLAN
  • Uses classic STP timers
  • Slow convergence
  • Supported on Cisco switches for legacy compatibility

PVST+ relies heavily on timers to transition ports between states. When a topology change occurs, ports must move through multiple states before forwarding traffic again.

PVST+ Port States

  • Blocking
  • Listening
  • Learning
  • Forwarding

Each transition uses default timers:

  • Forward Delay: 15 seconds
  • Max Age: 20 seconds

As a result, full convergence can take 30 to 50 seconds.

PVST+ Logical Flow Diagram

This diagram shows the timer-based progression used by PVST+.

Overview of Rapid-PVST+

Rapid-PVST+ is Cisco’s per-VLAN implementation of IEEE 802.1w Rapid Spanning Tree Protocol (RSTP). It was designed to solve the slow convergence problem of 802.1D.

Key Characteristics of Rapid-PVST+

  • Based on IEEE 802.1w
  • One spanning-tree instance per VLAN
  • Event-driven convergence
  • Very fast recovery
  • Default STP mode on modern Cisco switches

Rapid-PVST+ does not wait for timers to expire. Instead, it uses handshake mechanisms between switches to quickly determine whether a port can safely transition to forwarding.

Rapid-PVST+ Port Roles and States

Rapid-PVST+ introduces new port roles and simplifies states.

Port Roles

  • Root
  • Designated
  • Alternate
  • Backup
  • Edge

Port States

  • Discarding
  • Learning
  • Forwarding

Ports can move to forwarding almost immediately when conditions are met.

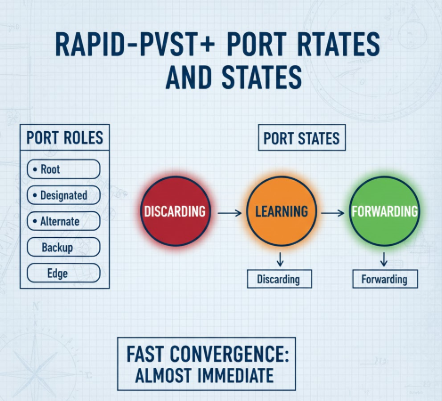

Rapid-PVST+ Logical Flow Diagram

This diagram shows the simplified and faster state transitions used by Rapid-PVST+.

Primary Difference

The primary difference between PVST+ and Rapid-PVST+ is:

PVST+ relies on timers for convergence, while Rapid-PVST+ relies on active handshakes and immediate decision-making.

This results in a major difference in convergence speed.

  • PVST+: 30–50 seconds
  • Rapid-PVST+: Less than 1–3 seconds in most cases

Cisco Network Impact

In real Cisco networks, slow convergence can cause:

  • Voice call drops
  • Application timeouts
  • Routing protocol instability
  • User connectivity issues

Rapid-PVST+ significantly reduces these risks and is suitable for:

  • Enterprise campus networks
  • Data center access layers
  • Environments with frequent topology changes

Troubleshooting Tools and Commands

Cisco provides several tools to verify and troubleshoot both protocols.

Verify Spanning Tree Mode

show spanning-tree summary

Verify Per-VLAN Status

show spanning-tree vlan <vlan-id>

Check Rapid-PVST+ Operation

show spanning-tree detail

Enable Rapid-PVST+

spanning-tree mode rapid-pvst

Identify Edge Ports

show spanning-tree interface <interface-id> detail

*Correct edge port configuration is critical for fast convergence.

Best Practices in Cisco Environments

  • Use Rapid-PVST+ as the default STP mode
  • Configure PortFast on access ports
  • Avoid mixing legacy 802.1D devices when possible
  • Monitor topology changes using logs and SNMP
  • Document root bridge placement per VLAN

PVST+ and Rapid-PVST+ both provide per-VLAN loop prevention in Cisco networks. However, they are not equivalent in performance.

  • PVST+ is based on legacy STP and converges slowly
  • Rapid-PVST+ is based on RSTP and converges almost instantly

For modern Cisco networks, Rapid-PVST+ is the correct and recommended choice unless backward compatibility is required.
