Subnetting is not math — it’s architecture in binary.

Every bit you borrow in subnetting is a design decision; the engineer who masters the bits, masters the network.

First Listen: let your ears lead the way before your mind takes notes.

Then read: let your eyes explore before your mind starts to explain.

Subnet — what does it really mean?

In the simplest possible terms, a subnet (short for subnetwork) is a smaller, logical segment of a larger IP network. But behind that simplicity lies the foundation of modern network design, routing efficiency, and address management — the very DNA of how every packet finds its destination.

Think of a subnet as a network within a network.
When you take a single IP block — say 192.168.10.0/24 — and divide it into multiple logical parts, you’re subnetting.
Each new part, or subnet, acts like a smaller network with its own:

• Network ID
• Host range
• Broadcast address
• Subnet mask
• Next Network

These smaller segments remain part of the same parent network but operate independently at Layer 3. Routers treat each subnet as a distinct route, giving structure and control to what would otherwise be one large, noisy domain.

The Real Purpose Behind Subnetting

Subnetting exists for three fundamental reasons:

1. Efficient IP Address Usage
   Without subnetting, large networks would waste thousands of IPs.
   Subnets let us allocate only what’s needed — a surgical precision in address planning.
2. Traffic Isolation & Performance
   Each subnet has its own broadcast domain.
   That means broadcasts from one subnet don’t flood others — reducing congestion and improving performance.
3. Logical Organization & Security
   Subnets group devices by department, role, or function.
   HR can have one subnet, IT another, and Guests another — allowing ACLs, VLANs, and routing policies to control communication boundaries.

Before understanding what subnetting is, ask yourself this question: what is a network in the context of subnetting?

In everyday language, people use network to mean many things — a Wi-Fi network, the Internet network, a group of computers network, etc. But in subnetting, the word network has a very precise technical meaning.

Let’s define it in that context:

A network is a group of IP addresses that share the same network identifier —

Meaning they belong to the same address range and can communicate directly with one another (without a router). Every network is defined by two key pieces:

1. A network address (the starting point or network identifier) 192.168.1.0/24
2. A subnet mask (which determines how large the network is) 255.255.255.0
   • Network Identifier = 192.168.1.0/24
   • First assignable host IP address: 192.168.1.1
   • Last assignable host IP address: 192.168.1.254
   • Broadcast IP: 192.168.1.255
   • CIDR/Subnet: /24 (which equals subnet mask 255.255.255.0).
   • Numbers of IP addresses: 256 total (2⁸), 254 usable host addresses (subtract 2 for network and broadcast).

Together, they describe the boundaries of that particular subnet. In this example 255 IPv4 address share the same Network Identifier.

Understanding Subnetting

Imagine you’re the mayor (city planning) of a magical community called Wonderland City.
Your job is to plan how all the houses, streets, and neighborhoods are organized.

At the heart of the city, you own a huge piece of land —
this represents your network block or network identifier, for example:

192.168.10.0/24

This means you’ve got 255 available addresses — like 255 lots where houses can be built.
Each lot is numbered from 1 to 255.

Almost every IP Address Is Like a House

In this city, each IPv4 address is a house.
For example:

House Number	IP Address
House 1	192.168.10.1
House 2	192.168.10.2
House 3	192.168.10.3
…	…
House 254	192.168.10.254

Each house is home to one family — one device such as a PC, printer, or server.
Just as two families can’t live in the same house, two devices can’t share the same IP address.

Every Network Is Like a Street

Now, if your land has 254 houses (addresses), you could just build one big street with all of them.
That’s your default network:

192.168.10.0/24
Subnet Mask: 255.255.255.0

So now you have:

• Street name: Wonderland Street
• House numbers: 1 – 254
• Everyone lives on the same street

Sounds easy, right? Until every car in town tries to use the same single road at the same time.
The result? Gridlock, noise, and total chaos — nothing moves, and no one gets through.

Subnetting = Building More Streets

As the city grows, you realize not everyone needs to live on Wonderland Street.
You can build more streets and divide your residents across them.

That’s subnetting.

Subnetting is the act of taking one large street (network identifier) and dividing it into several smaller streets (subnets), each with its own name and its own house numbers.

So instead of one giant Wonderland Street with 254 houses, you might create:

Street Name	Network Address	Subnet Mask	House Range	Broadcast
Wonderland Street	192.168.10.0	255.255.255.192	.1 – .62	.63
Wonderland Way	192.168.10.64	255.255.255.192	.65 – .126	.127
Wonderland Court	192.168.10.128	255.255.255.192	.129 – .190	.191
Wonderland Avenue	192.168.10.192	255.255.255.192	.193 – .254	.255

Now, your original neighborhood (192.168.10.0/24) is split into four smaller, quieter neighborhoods, each with 62 houses.

That’s subnetting — city planning for data.

Hold on… I get that the street name is the network address, the subnet mask shows where the street begins and ends, and each house is an IP address — but who’s this new neighbor called Broadcast?

Broadcast in Simple Terms

✓ Street name = Network Address
✓ Subnet mask = Street boundaries
✓ Houses = IPv4 addresses

Now, in every neighborhood, there’s a Homeowners Association (HOA) — (if you live in USA)
and sometimes the HOA sends an announcement to everyone in the same neighborhood:

“Reminder: Meeting tonight at 6 PM.”

That announcement is the broadcast.

It goes to every house in that neighborhood —
but it doesn’t reach the next neighborhood,
because each has its own HOA and its own announcement board.

How It Maps to Networking

Real-World	Networking Term	Example
Neighborhood	Network/Subnet	192.168.1.0/24
House	Host/IP Address	192.168.1.10
HOA Announcement	Broadcast Address	192.168.1.255
Neighborhood Gate	Router	Keeps announcements local
Street Map	Subnet Mask	Defines neighborhood limits

• Broadcast = one message sent to all devices in the same subnet.
• It’s always the last IP address in that subnet.
• Routers don’t forward broadcasts — they keep the message inside the local network.
• Subnetting creates smaller “neighborhoods,” so broadcasts stay local and networks stay efficient.

A broadcast is like your HOA sending one announcement to every house in your neighborhood — everyone on your street hears it, but nobody in the next neighborhood does.

Same House Numbers, Different Streets

Here’s where this analogy gets really powerful.

Just like in a real city, you can have:

• 123 Wonderland Street
• 123 Wonderland Way
• 123 Wonderland Court

The house number (123) repeats, but the street name makes each address unique.

In networking, that’s exactly how subnets work.
You can reuse the same host numbers (like .1 or .10) in different subnets, because their network portion (street) is different.

Full Address	Belongs To	Network
192.168.10.1	Wonderland Street	192.168.10.0/26
192.168.10.65	Wonderland Way	192.168.10.64/26
192.168.10.129	Wonderland Court	192.168.10.128/26
192.168.10.193	Wonderland Avenue	192.168.10.192/26

Each one has its own neighborhood, and no confusion occurs —
because the street (network identifier) defines the boundary.

Routers = The Mail Carriers Between Streets

Now imagine you live at 123 Wonderland Way, and your friend lives at 123 Wonderland Street.
Even though both addresses sound similar, they’re on different streets — separated by a wall or boundary.
You can’t just walk across; you have to take the main road that connects all the streets.
That main road is your router — it’s what allows communication between different networks.

A router is like the city’s post office or transportation system.
It connects all the different streets (networks) so residents can exchange data or letters.

Without a router, people can only talk to others on their same street (subnet).

Subnet Mask = The Blueprint of Each Street

Your subnet mask is like the map key that tells the city planner:

• How long each street is (how many houses it can hold)
• Where one street ends and the next begins

For example:

• 255.255.255.0 = one long street (254 houses)
• 255.255.255.192 = four smaller streets (64 houses each)
• 255.255.255.224 = eight tiny streets (32 houses each)

As you increase the subnet mask, you get more streets, but each street has fewer houses.

More subnets = smaller neighborhoods.
Fewer subnets = bigger neighborhoods.

How Cisco Sees These Streets

Let’s say you configure a router like this:

Router(config)# interface GigabitEthernet0/0
Router(config-if)# ip address 192.168.10.1 255.255.255.192
Router(config-if)# no shutdown
Router(config-if)# description Wonderland Street
!
Router(config)# interface GigabitEthernet0/1
Router(config-if)# ip address 192.168.10.65 255.255.255.192
Router(config-if)# description Wonderland Way
Router(config-if)# no shutdown
!
Router(config)# interface GigabitEthernet0/2
Router(config-if)# ip address 192.168.10.129 255.255.255.192
Router(config-if)# description Wonderland Court
Router(config-if)# no shutdown

Now your router has “mail routes” (interfaces) to three different streets.

Checking your “city map” in Cisco:

Router# show ip route

You’ll see:

C    192.168.10.0/26 is directly connected, GigabitEthernet0/0
C    192.168.10.64/26 is directly connected, GigabitEthernet0/1
C    192.168.10.128/26 is directly connected, GigabitEthernet0/2

Each C entry means the router owns that street — it’s connected directly.
If someone from Wonderland Court sends a packet to Wonderland Way, the router carries it there.

Quick Street-Planning Reference

Subnet Mask	# of Streets	Houses per Street	Example Street Names
255.255.255.0 (/24)	1	254	Wonderland Street
255.255.255.128 (/25)	2	126	Wonderland Street and Wonderland Way
255.255.255.192 (/26)	4	62	Wonderland Street, Wonderland Way, Wonderland Court and Wonderland Ave
255.255.255.224 (/27)	8	30	Many small cul-de-sacs
255.255.255.240 (/28)	16	14	Tiny private drives

This is literally city zoning for your network.

Troubleshooting in Your Wonderland

Symptom	Real-World Analogy	Cisco Command
Houses can’t talk to neighbors	Wrong house numbers IPv4 address or street map submask	ipconfig (on PC) / show running-config (on Cisco router)
Houses can’t reach other streets	The mail carrier (router) is missing. Check default router / gateway!	show ip route (on Cisco router)
Too much noise on one street	Too many houses in one subnet	Increase subnet mask to create more streets
Duplicate IPs	Two people living in the same house!	Check DHCP and IP assignments

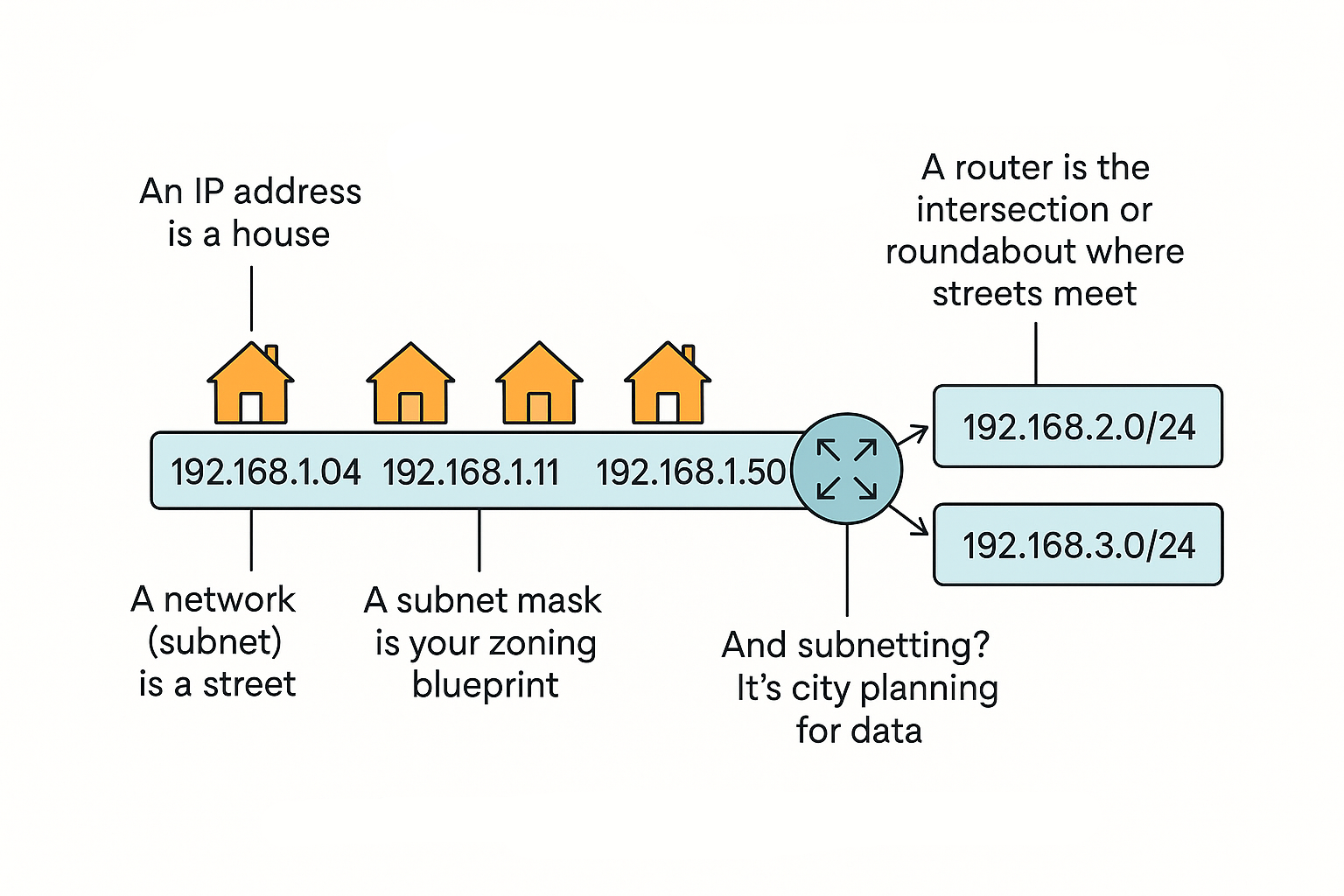

Subnetting perspective

• An IP address is a house.
• A network (subnet) is a street — all houses that share the same street name (network prefix).
• A router is the intersection or roundabout where streets meet — it’s what lets cars (data) move from one street to another.
• A subnet mask is your zoning blueprint — it decides how big each street is and where it ends.

And subnetting?
It’s city planning for data — designing how many streets you have, how big they are, and who lives where.

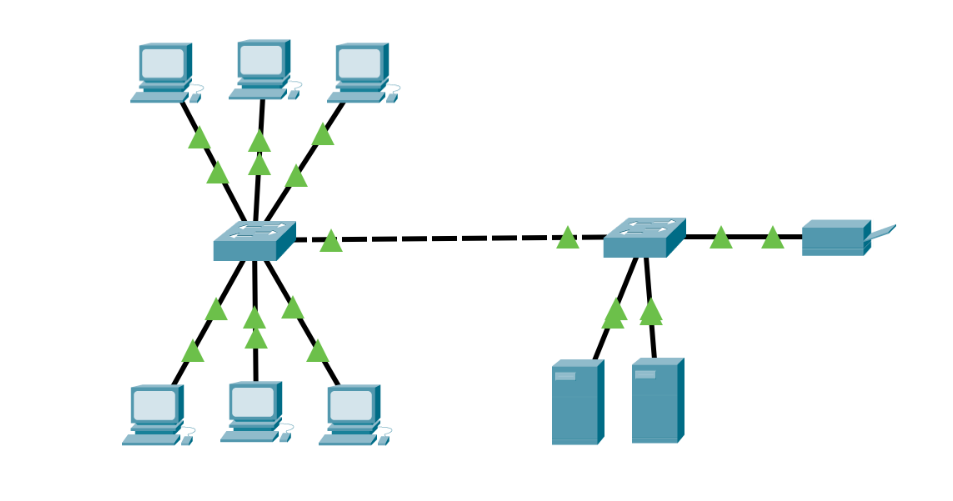

Single Broadcast Domain Topology

All devices are part of a single broadcast domain — a flat topology… but, what is a flat topology?

In a flat topology, imagine your digital city as one enormous street with hundreds or even thousands of houses — all sharing the same street name and all directly connected to each other.

There are no routers or intersections to separate traffic — it’s just one big, continuous block of homes.
It’s simple, cheap, and easy to set up — but also chaotic when the population grows.

OSI Terms

Flat topology exists at OSI Layer 2 — the Data Link Layer.
This is the layer where MAC addresses live — those unique hardware IDs burned into every network card (like the physical street address on a house).

At Layer 2:

• Devices talk directly using MAC addresses, not IP addresses.
• Communication happens through switches, not routers.
• There’s no segmentation or hierarchical structure — all devices are in the same broadcast domain. There is no subnet at all.

So when one device says, “Who has IP 192.168.1.10?” (an ARP request), every device on that flat network hears it — just like shouting across the entire street to find a friend.

Why Flat Topology Is “Flat”

It’s called flat because there’s no hierarchy — just one big layer.
Everyone is on the same level, sharing the same broadcast space, with no divisions or routing between them.

In the context of networking and subnetting, "no hierarchy" (or a flat addressing structure) describes an addressing scheme where all devices are essentially on the same level, without a logical or structured division into smaller, organized networks. Subnetting itself is the opposite of a "no hierarchy" approach; it explicitly introduces hierarchy.

Imagine a party where everyone shares one giant room. You don’t need doors or hallways (routers) to move between groups — you just shout across the room. That’s convenient when there are 5 people. But when there are 500, it gets noisy, confusing, and inefficient.

The Role of OSI Layer 2

Layer 2 is responsible for switching, not routing.
Switches use MAC addresses to decide where to send frames (not IP packets).

When you connect devices in a flat topology:

• All of them share the same network ID (like the same street).
• Switches forward frames based on MAC tables.
• Broadcasts (like ARP requests) are sent to everyone.
• There’s no isolation or segmentation.

If a single device sends out too many broadcasts or errors, it can flood the entire network, slowing down or crashing communications — like one noisy neighbor disturbing the entire street.

Let’s say you have this network:

Device	IP Address	Subnet Mask	MAC Address
PC1	192.168.1.10	255.255.255.0	00:1A:92:00:00:01
PC2	192.168.1.11	255.255.255.0	00:1A:92:00:00:02
Printer	192.168.1.50	255.255.255.0	00:1A:92:00:00:03
Server	192.168.1.100	255.255.255.0	00:1A:92:00:00:04

They are all connected to the same switch.
There’s no router.
They all share the same subnet: 192.168.1.0/24 (that’s the same “street name”).

This means:

• They can all communicate directly (no router needed).
• Every broadcast reaches everyone.
• If one device has an issue, the entire subnet feels it.

That’s a flat Layer 2 network.

What Happens When the City (your network) Grows?

If your city (network) only has a few houses, one big street is fine.
But as the population grows — more computers, more phones, more servers — traffic jams start forming.

Problems with a Flat Topology

1. Broadcast Storms
   When too many devices broadcast at once, it’s like everyone shouting in the same room — no one can hear clearly.
2. Limited Scalability
   Switches can only handle so many MAC addresses in their tables.
3. Security Risks
   All devices are visible to each other. A hacker in one house can easily peek into others.
4. Troubleshooting is Hard
   Since everything is one big subnet, finding a fault is like searching for a single broken wire in a tangle of hundreds.

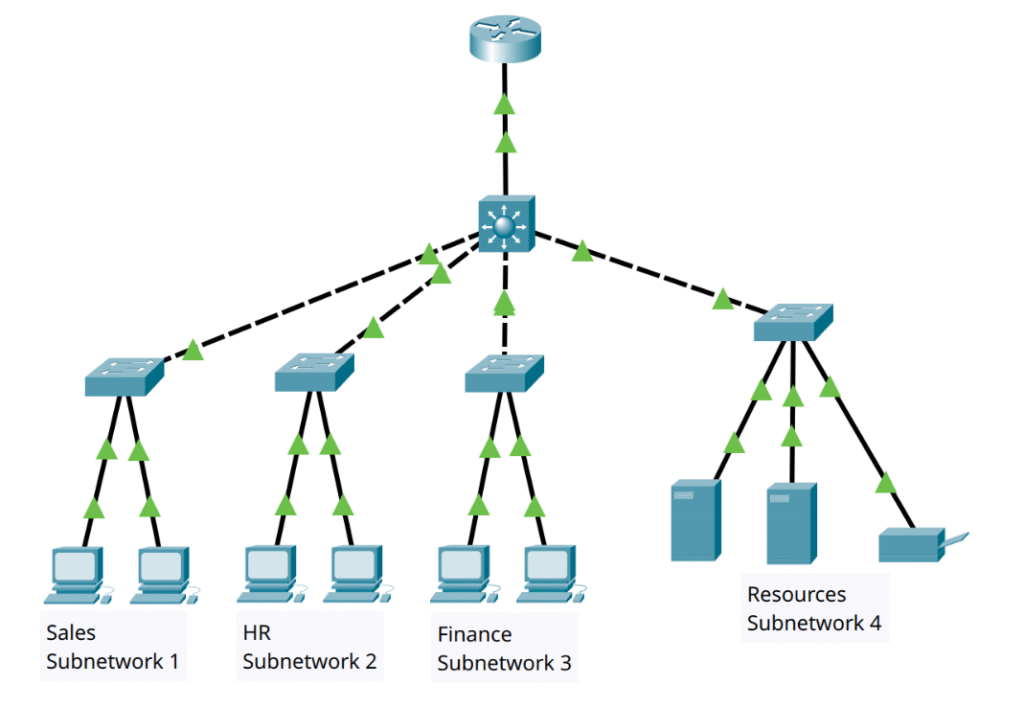

Layer 3 to the Rescue: Adding Streets and Intersections

To fix the chaos, cities (networks) evolve by introducing Layer 3 boundaries — routers or Layer 3 switches that separate traffic into smaller, more manageable streets.

Now:

• Each subnet is a different street (e.g., 192.168.1.0/24 and 192.168.2.0/24).
• Routers connect these streets so data can still travel between them when needed.
• Broadcasts are contained within their own subnet — no more shouting city-wide.

This hierarchical design is called a layered topology (often hierarchical or segmented), which replaces the older flat topology in most modern networks.

The Role of the Subnet Mask

In our metaphor, the subnet mask is your zoning blueprint — it defines where your street (subnet) begins and ends.

For example:

• 255.255.255.0 (or /24) means 254 possible addresses (one street with 254 houses available for use).
• 255.255.255.128 (or /25) splits that street into two smaller streets, each with 126 houses.

So if you’re the city planner (network administrator), you can decide:

• How many subnets (streets) you need.
• How many hosts (houses) each subnet should hold.

That’s subnetting — city planning for data.

Subnetting is the process of dividing a large network into smaller, more efficient subnets.

It’s like saying:

Instead of one long street with 254 houses, let’s build four shorter streets with 62 houses each.

This keeps traffic local, reduces congestion, and makes management easier.

Key Troubleshooting Commands

Purpose	Command	Description
View MAC table	show mac address-table	Shows all devices connected at Layer 2.
Verify interface status	show interfaces status	Confirms which ports are up/down.
View VLAN info	show vlan brief	Displays all VLANs and their member ports.
Test IP reachability	ping [IP]	Sends test packets to verify connectivity.
Trace network path	traceroute [IP]	Shows the route packets take through the network.
Check routing table	show ip route	Displays known networks and next hops.
Check ARP cache	show ip arp	Maps IP addresses to MAC addresses.
Verify switch port config	show running-config interface [int]	Shows the configuration for a specific interface.

Let’s tie it all together:

• A flat topology means all devices share the same Layer 2 network — one big street where everyone hears everyone.
• It’s simple and cost-effective but becomes chaotic as the network grows.
• Routers and subnets add structure, like creating multiple streets connected by intersections.
• The subnet mask defines the size of each street.
• Subnetting is network city planning — balancing efficiency, scalability, and performance.

In short:

A flat Layer 2 network is like a small village where everyone can talk directly.
But a subnetted Layer 3 network is a well-organized city, where traffic flows smoothly between neighborhoods.

What You Should Take Away

Concept	Flat Network	Segmented Network
Definition	All devices share one broadcast domain	Network divided into multiple VLANs/subnets
Structure	Simple, single subnet	Logical or physical separation
Devices Used	Switch (Layer 2 only)	Switches + Routers or L3 Switches
Broadcasts	Sent to all nodes	Contained within VLANs
Security	Low	High
Performance	Slows as devices increase	Scales efficiently
Use Case	Home, small office	Enterprise, campus, data center

A flat network is like one big classroom: when the teacher asks a question, everyone shouts their answer.
A segmented network is like splitting the class into smaller groups — each works efficiently, quietly, and only asks the teacher (router) when they need to interact with other groups.

This is why segmentation isn’t just a “luxury” — it’s a requirement for scalability.
The moment you have 20+ devices generating broadcast traffic, your flat network begins to choke.

Real-World Application Example

Imagine a small business growing from 10 employees to 200.
Initially, they used a single switch (flat). Suddenly:

• HR’s confidential files become accessible across the network.
• Printers in Accounting respond to everyone’s jobs.
• The VoIP phones crackle because broadcast storms interfere with voice traffic.

Once they segment:

• VLAN 10: HR
• VLAN 20: Accounting
• VLAN 30: Engineering
• VLAN 99: Management

Each department gets its own subnet and controlled routing.
Network performance skyrockets, and sensitive data stays protected.

• Flat networks are fine for simplicity but quickly become a liability.
• Segmented networks (VLANs) bring scalability, performance, and security.
• Routers or Layer 3 switches bridge the communication between those segments.

Take a Break Before Starting the Second Part

Before you continue with the second part of this lesson, I want you to take a break.
Yes — pause for a moment! This isn’t lost time; it’s actually a crucial part of your learning process.

Why I’m Asking You to Take a Break

Learning isn’t just about going through videos or reading the material.
It’s also about giving your brain the space and time it needs to process and truly absorb what you’ve just learned.
When you take a break:

• Your brain organizes and consolidates the information, storing it in long-term memory.
• You reduce mental fatigue and come back with better focus and energy.
• You trigger a process called incubation, which helps you understand ideas more deeply — even while you’re not studying.
• You restore your motivation and clarity, making the next part of the lesson easier and more enjoyable.

How Long Should You Rest?

Here’s what I recommend:

• Ideally, wait 2 to 3 days before starting the second part of this lesson.

This short pause will give your mind time to settle and make stronger connections with what you’ve just learned.

Remember

Learning isn’t only about pushing forward — it’s also about knowing when to pause.
Every break you take helps you understand more deeply, remember more clearly, and learn more effectively.

Summary

Before you go, take a moment to answer these questions

[Return to CCNA Study Hub] — Next Stop: [Section 2 | Subnetting: Practice ] …Currently Buffering… Available Soon!
